PRODUCT INFORMATION

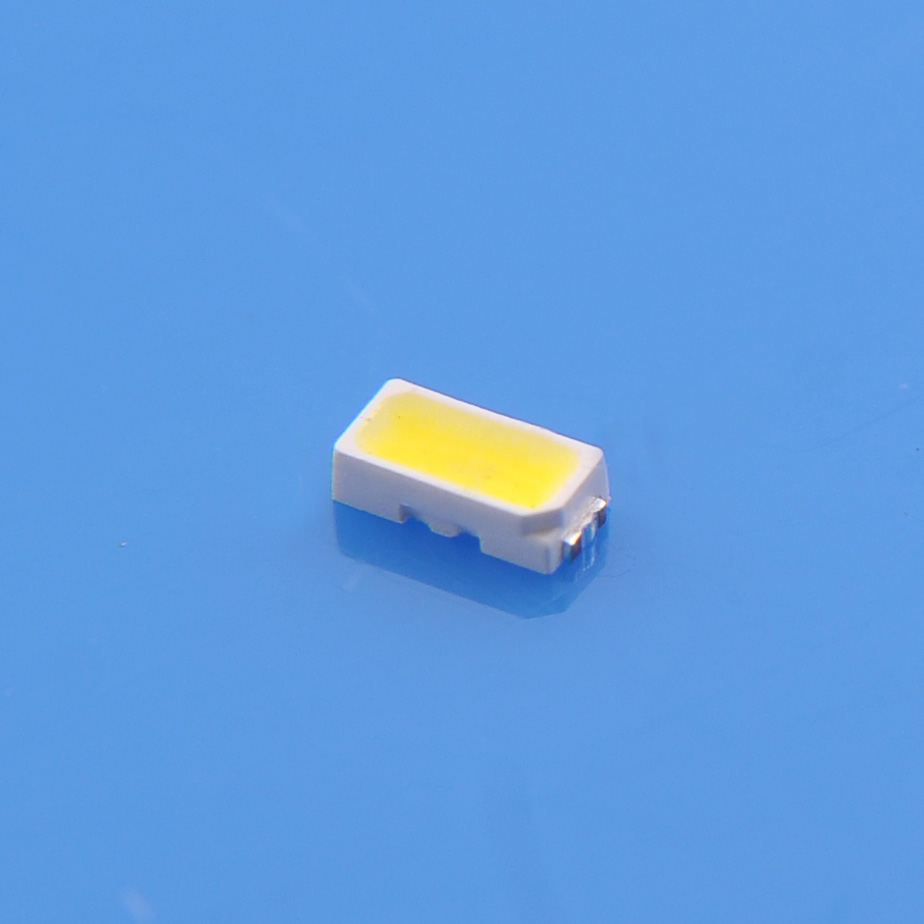

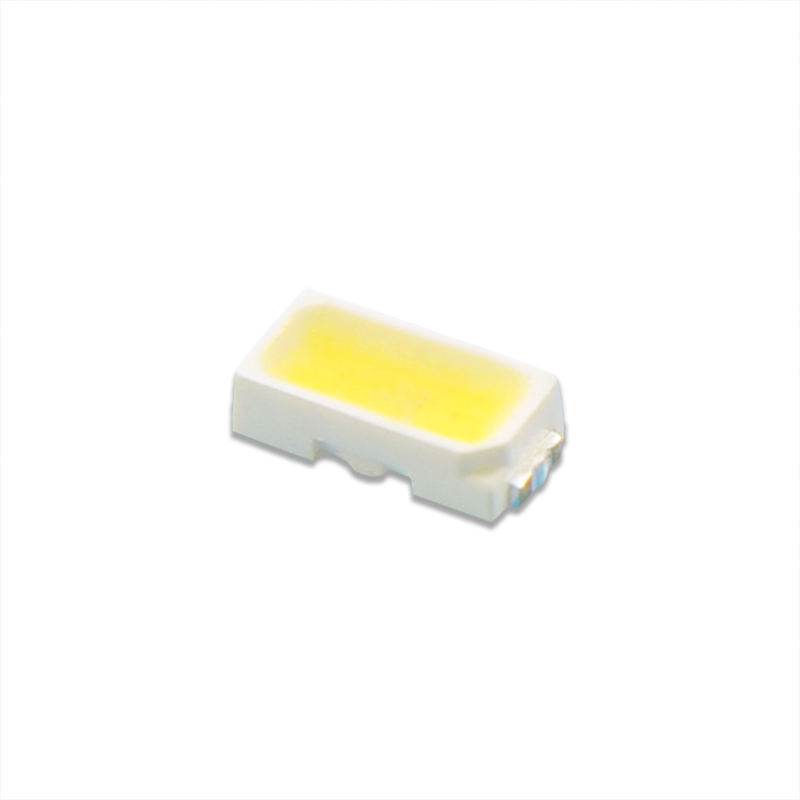

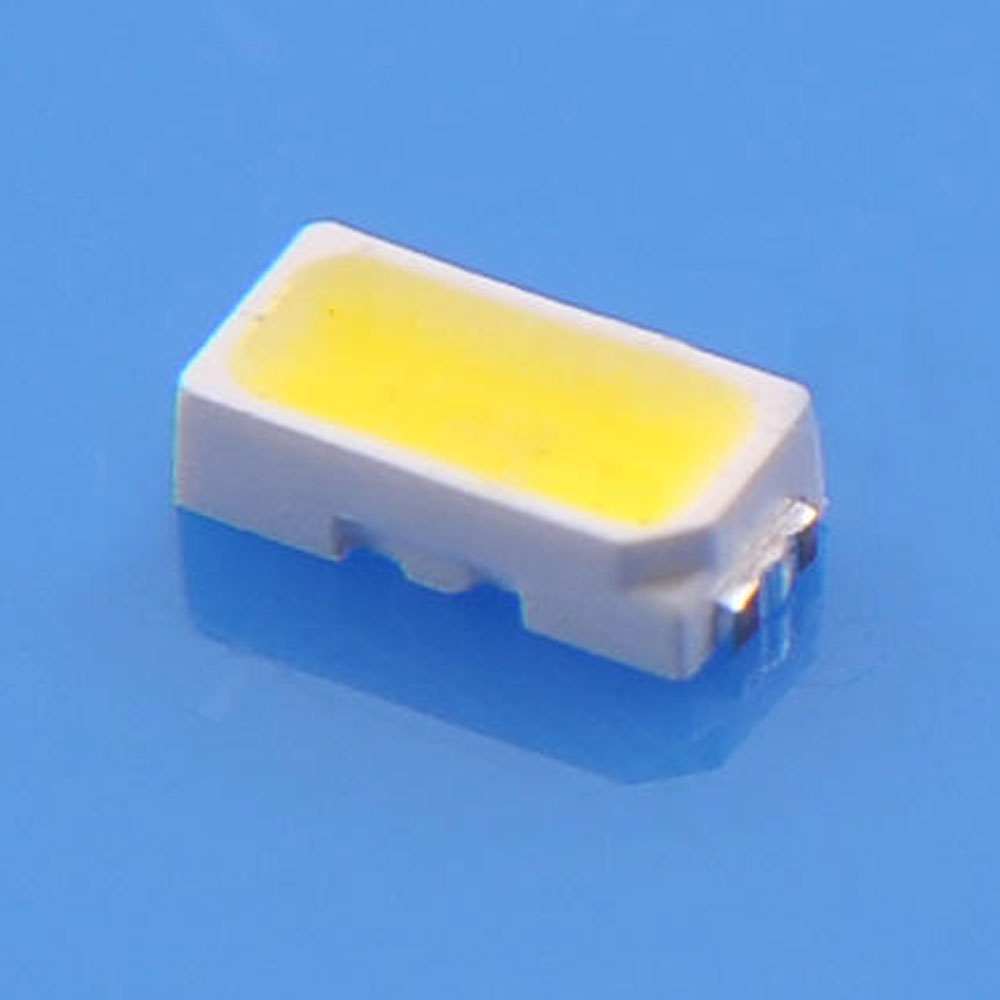

High Quality SMD3014
 |
PRODUCT FEATURES
◆ Extremely wide viewing angle
◆ Long lifespan：life can up to 50,000H
◆ High luminous efficiency
◆ Suitable for all SMT assembly and solder process.

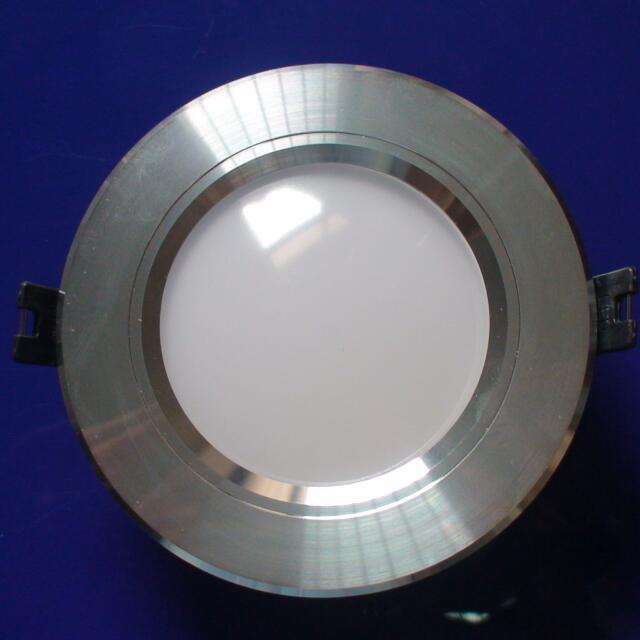

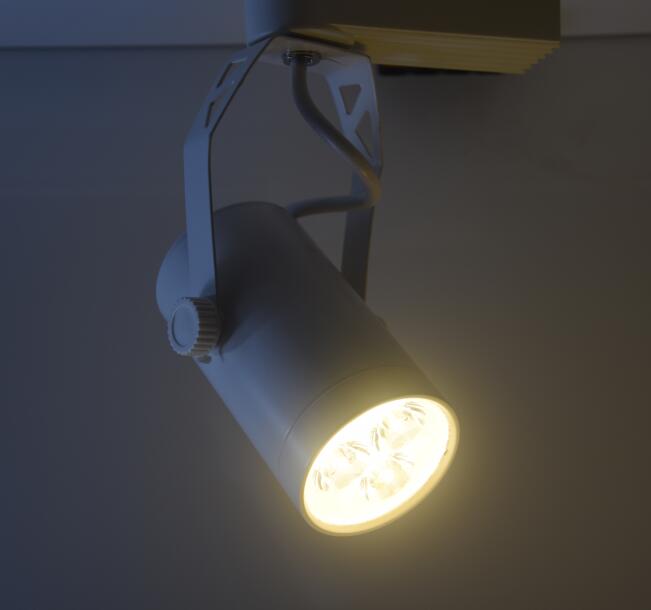

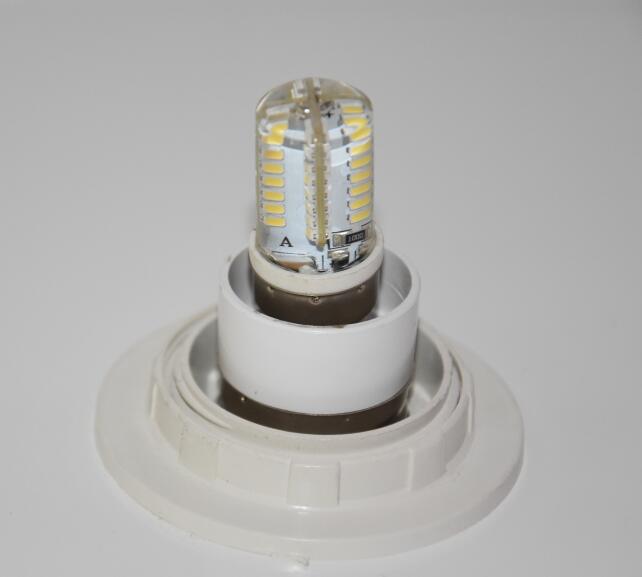

◆ Wide usage：available on tape and reel, also can used for bulb, downlight, spot light, flood light, tube, strip and advertising signboard.
◆ Moisture sensitivity level: Level 4
| Product Application | |
 |  |

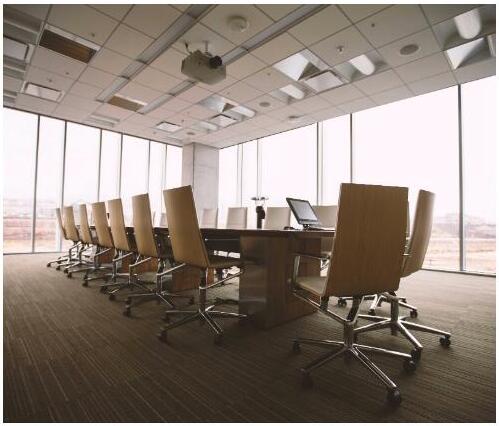

| Advertisment Signboard | Office |
 |  |

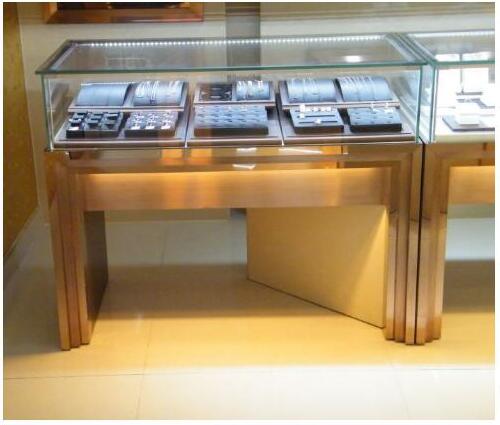

| Jewelry Display | Clothes Store |
PRODUCT PARAMETERS
| Emitting Color | CCT | Luminous Flux(LM) | Forward Voltage(V) | Forward Current(mA) | Mounting Way | ||
| min | max | min | max | max | Reflow | ||
| White | 5500-6500K | 8 | 12 | 3 | 3.5 | 30 | |
| 18 | 22 | 3 | 3.5 | 60 | |||
| Warm White | 2800-3200K | 6 | 10 | 3 | 3.5 | 30 | |
| 16 | 20 | 3 | 3.5 | 60 | |||
| Natural White | 4500-4500K | 8 | 12 | 3 | 3.5 | 30 | |
| 18 | 22 | 3 | 3.5 | 60 | |||
APPLICATION
Available on tape and reel, also can used for bulb, downlight, spot light, flood light, tube, strip and advertising signboard.
