IR 3535 LED 850nm High Power 3W Infrared SMD LED 1.8-2.2V 200-300mW
Model
JY-3535AR850-3-42
Original
Zhongshan, China
MOQ
10000PCS
Delivery Time
10-20 days after received deposit. Big order quantity,the delivery date may be extended appropriately.
Trade Terms
EXW, FOB Zhongshan/ Shenzhen
Payment Terms
T/T 30% deposit,70% balance should be paid before shipment.
Packing
Standard Export Carton
Shipping
By sea,by air or by express delivery(DHL/UPS/TNT/FEDEX)
Certificate
CE
OEM/ODM
Available
Warranty
2 Years

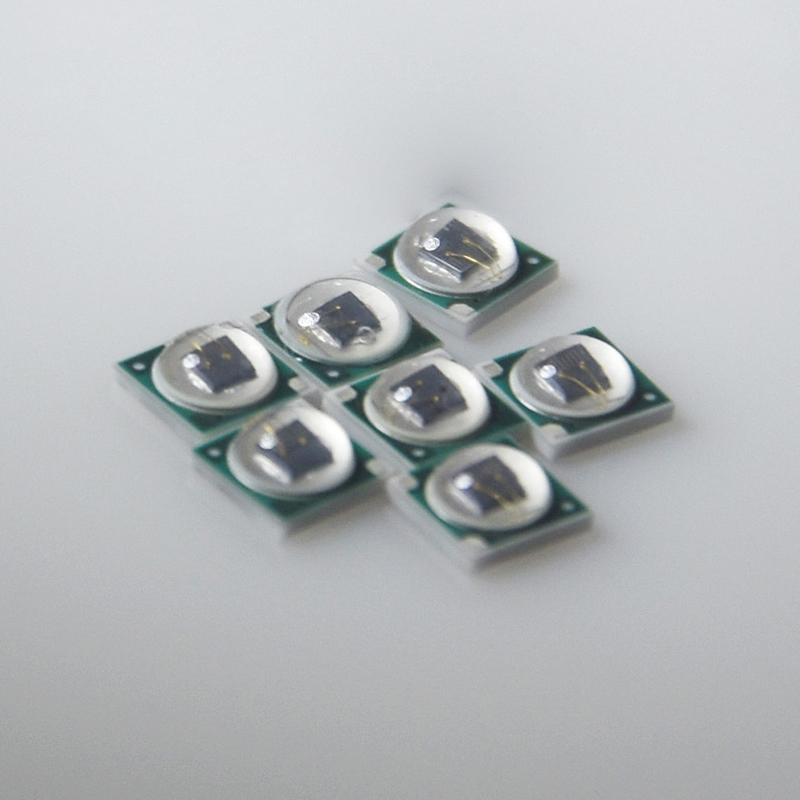

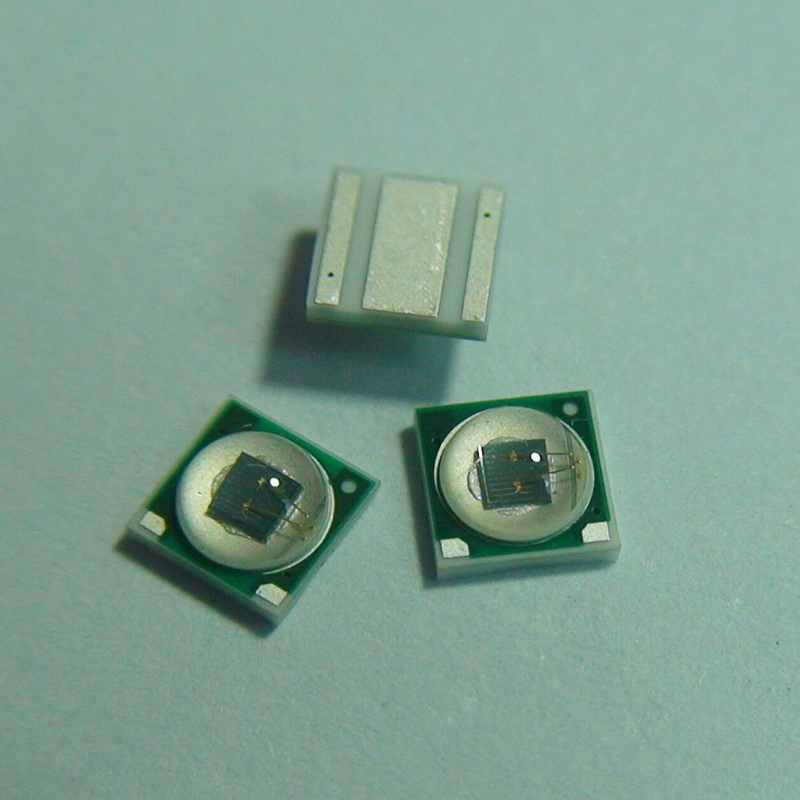

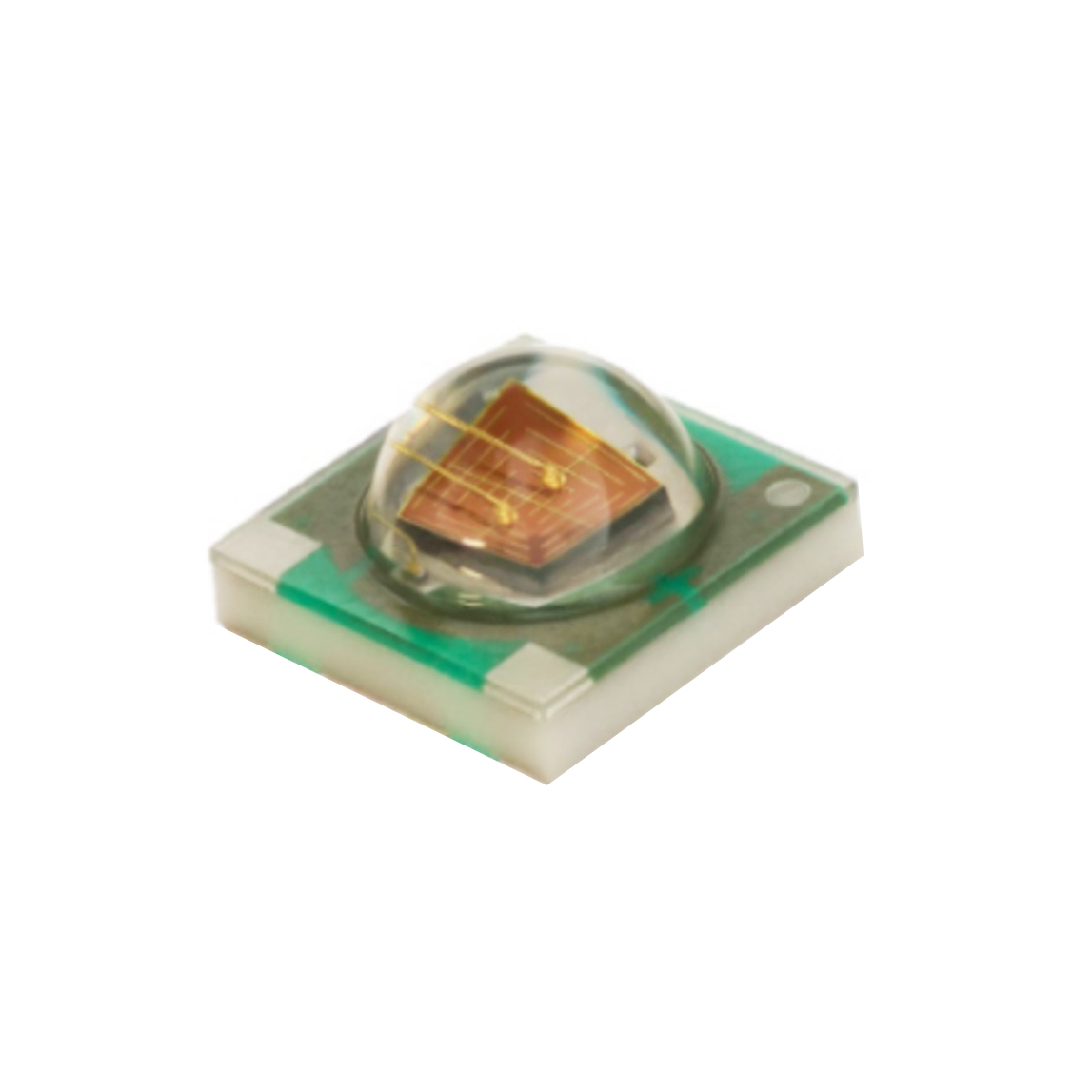

PRODUCT PICTURE


IR 3535 LED 3W-1.jpgIR 3535 LED 3W-2.jpg



PRODUCT FEATURES


 Wide viewing angle

 Long lifespan:life is up to 50,000H

 High luminous flux and low power comsumption.

 Suitable for all SMT assembly and solder process.

◆ Wide usage:available on tape and reel, also can used for bulb, downlight, spot light, flood light, tube, strip and advertising signboard.

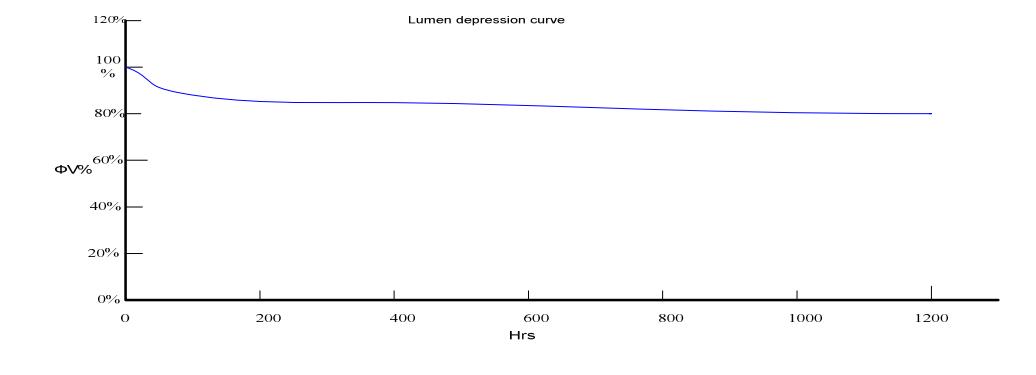

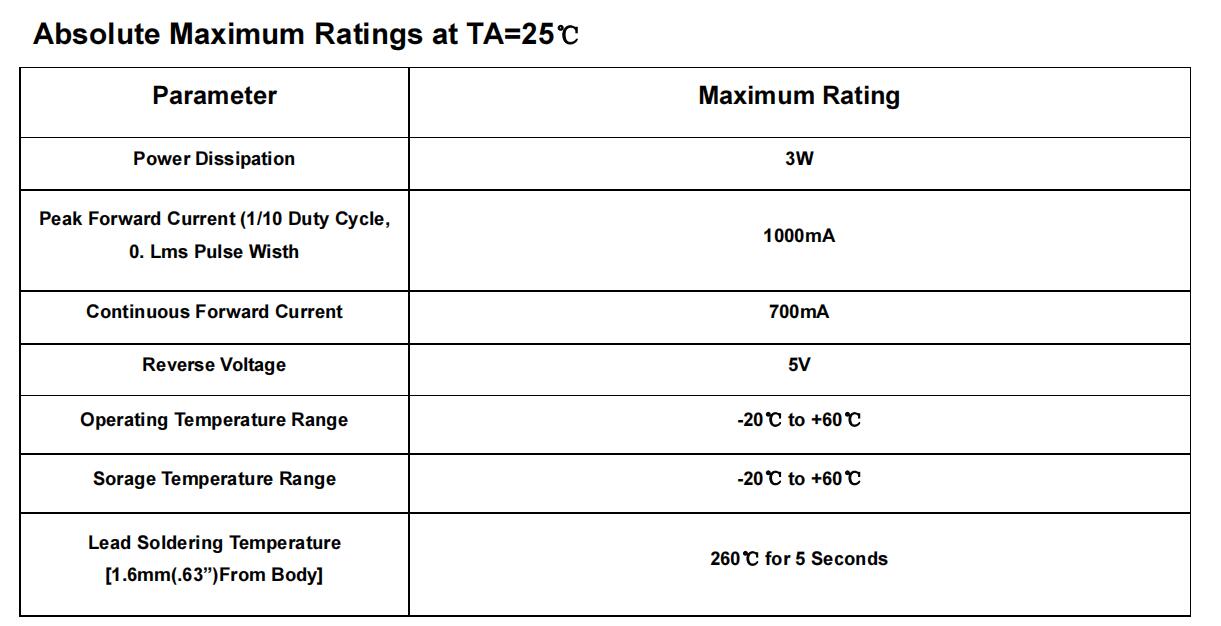

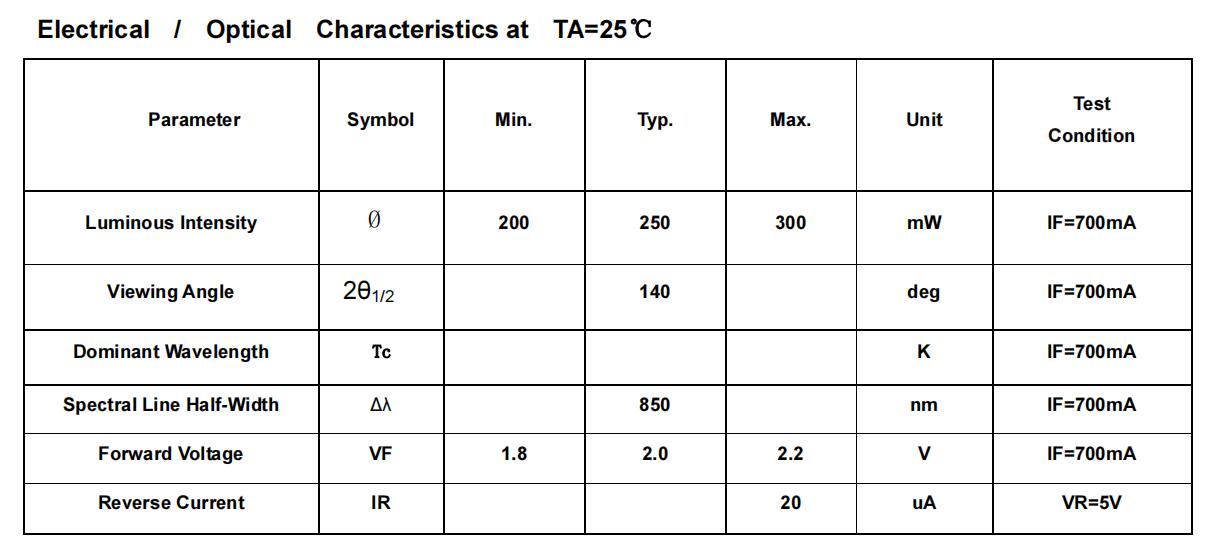

PRODUCT PARAMETERS



850NM 3W.jpg
850NM 3W-1.jpg

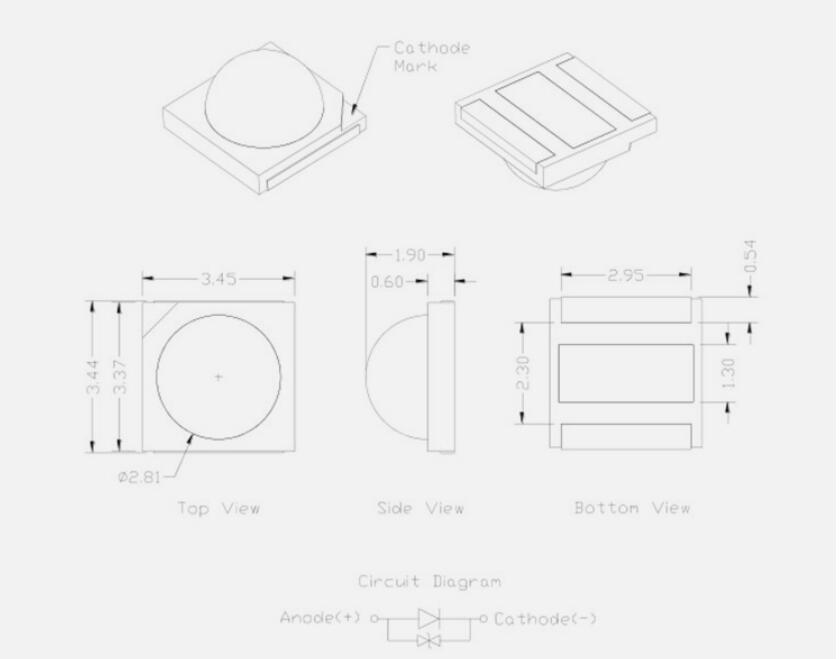

PACKAGE DIMENSION


850NM 3W 尺寸.jpg
