PRODUCT INFORMATION
PRODUCT FEATURES

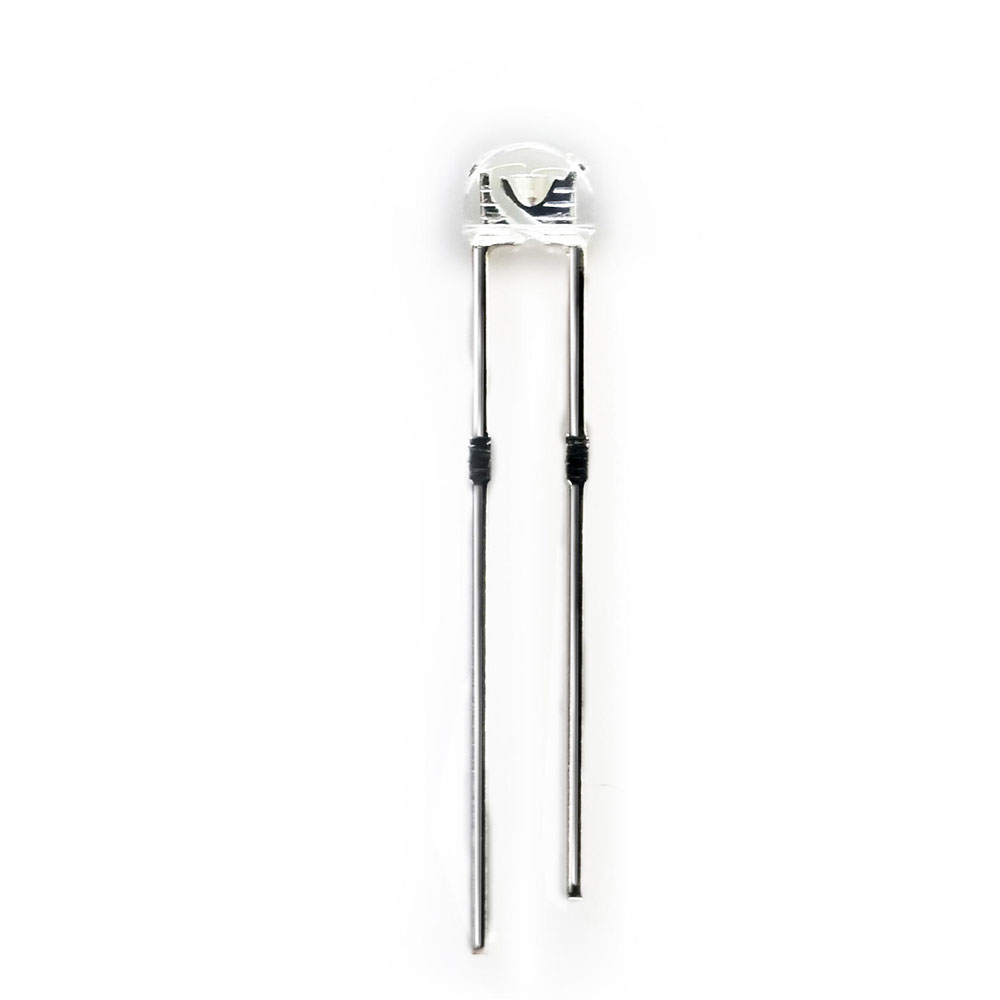

◆ Ice cream shape.
◆ Energy saving and environmental friendly. Use epoxy resin for colloid.
◆ Ultra long life and stable output.
◆ High luminous intensity and low light decay.
◆ Quick lit.
◆ Adopt high quality bracket and 99.9% gold wire.
PRODUCT PARAMETERS
| Type | Part Number | Chip Material | Lens Color | Emitting Color | Forward Voltage(v) | Dominant Wave length Intensity(nm) | Luminous Intensity(mcd) | |||
2*3*4mm/ Rectangular | min | max | min | max | min | max | ||||
| 2R2UC-A603 | AlGaInP | Water clear | Red | 1.8 | 2.3 | 620 | 640 | 400 | 600 | |
| 2Y2UC-A603 | AlGaInP | Water clear | Yellow | 1.8 | 2.3 | 585 | 595 | 400 | 600 | |
| 2B2UC-A603 | InGaN | Water clear | Bule | 2.9 | 3.5 | 460 | 475 | 500 | 1000 | |
| 2P2UC-A603 | InGaN | Water clear | Green | 2.9 | 3.5 | 500 | 535 | 700 | 1500 | |
| 2W2UC-A603 | InGaN | Water clear | white | 2.9 | 3.5 | 1000 | 1800 | |||
APPLICATION
It applies to decoration lighting, advertisement lighting, stage lamp, indicator and electrical products, digital products, automatic electronics, traffic instruction, electrical appliance and so on.
