PRODUCT INFORMATION
PRODUCT FEATURES
 |  |  |
 |  |
◆ Energy saving and environmental friendly. Use epoxy resin for colloid.
◆ Ultra long life and stable output.
◆ High luminous intensity and low light decay.
◆ Quick lit.
◆ Adopt high quality bracket and 99.9% gold wire.
PRODUCT PARAMETERS
| Model | Size | Lens Color | Emitting Color | Forward Voltage(V) | Wavelength (nm) | Luminous Intensity (mcd) | |||
| min | max | min | max | min | max | ||||
| 5R2SUC-A703 | ø5mm | Water clear | Red | 2.1 | 2.3 | 620 | 640 | 50 | 100 |
| 5Y2SUC-A703 | ø5mm | Water clear | Yellow | 1.9 | 2.1 | 585 | 595 | 200 | 300 |
| 5B2UC-A703 | ø5mm | Water clear | Bule | 2.9 | 3.2 | 460 | 475 | 80 | 110 |
| 5P2UC-A703 | ø5mm | Water clear | Green | 2.7 | 2.9 | 500 | 535 | 400 | 500 |
| 5W2UC-A703 | ø5mm | Water clear | White | 3.1 | 3.4 | 13000 | 16000 | 100 | 200 |

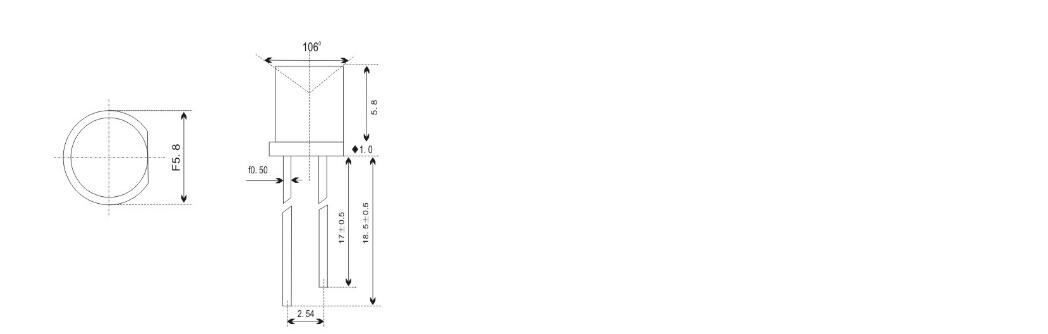

Package Dimension Unit: mm Tolearance: ±0.1 | ||
 |  |  |

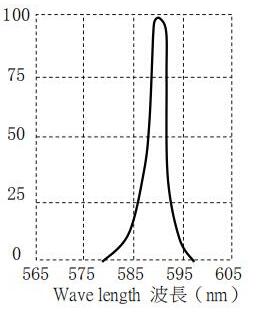

| Red Wavelength | Yellow Wavelength | Green Wavelength |
 |  |  |  |

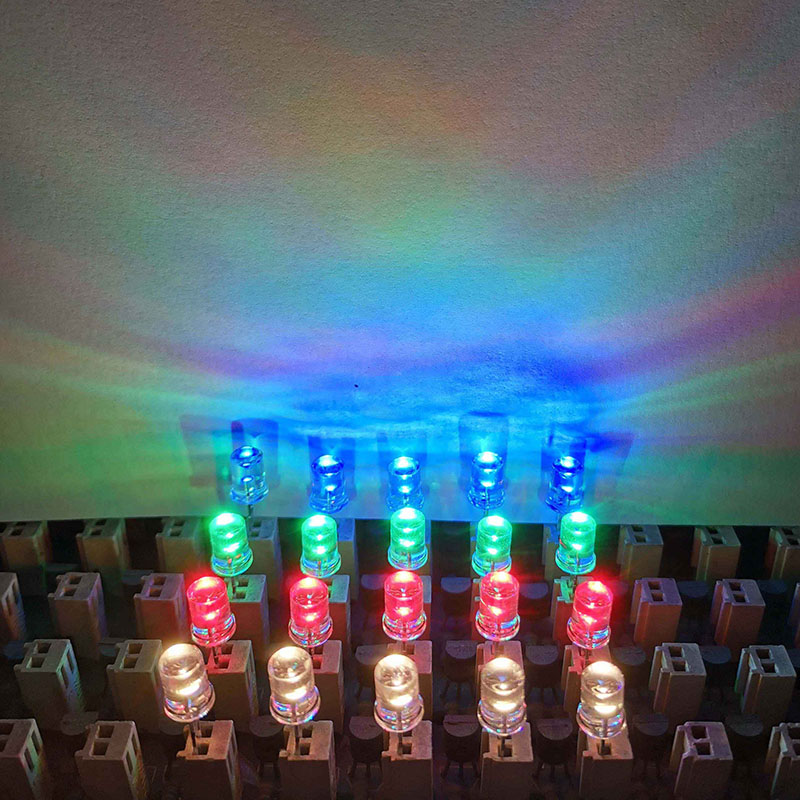

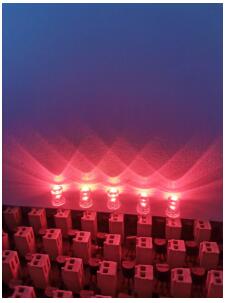

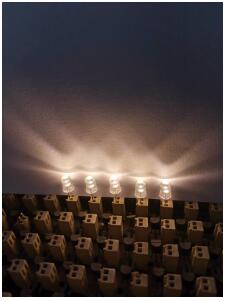

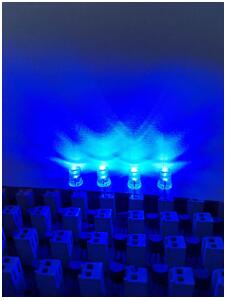

| Red light | Green Light | Warm White | Blue |
APPLICATION
It applies to decoration lighting, advertisement lighting, stage lamp, indicator and electrical products, digital products, automatic electronics, traffic instruction, electrical appliance and so on.
