PRODUCT INFORMATION
PRODUCT FEATURES
◆ Energy saving and environmental friendly. Use epoxy resin for colloid.
◆ Ultra long life and stable output.
◆ High luminous intensity and low light decay.
◆ Quick lit.
◆ Adopt high quality bracket and 99.9% gold wire.
PRODUCT PARAMETERS
| Size | Lens Color | Emitting Color | Forward Voltage(V) | Dominant Wave length Intensity(mm) | Luminous Intensity(mcd) | |||
| min | max | min | max | min | max | |||
| ø5mm | Water clear | Red | 1.8 | 2.3 | 620 | 640 | 1000 | 3000 |
| ø5mm | Water clear | Yellow | 1.8 | 2.3 | 585 | 595 | 1000 | 3000 |
| ø5mm | Water clear | Orange | 1.8 | 2.3 | 600 | 610 | 1000 | 3000 |
| ø5mm | Water clear | Bule | 2.9 | 3.5 | 460 | 475 | 2000 | 6000 |
| ø5mm | Water clear | Green | 2.9 | 3.5 | 500 | 535 | 5000 | 25000 |
| ø5mm | Water clear | White | 2.9 | 3.5 | - | - | 9000 | 20000 |
| ø5mm | Water clear | Pink | 2.9 | 3.5 | - | - | 2500 | 7000 |
| ø5mm | Water clear | Violet | 2.9 | 3.5 | - | - | 2500 | 7000 |
 |  |

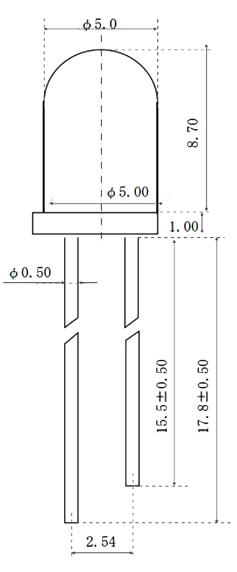

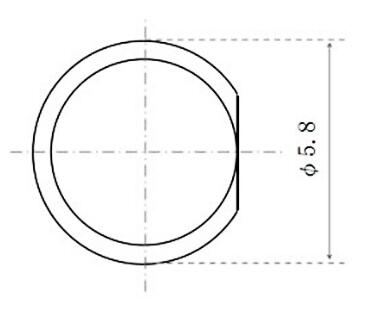

Package Dimension Unit: mm Tolearance: ±0.1 |
 |  |  |

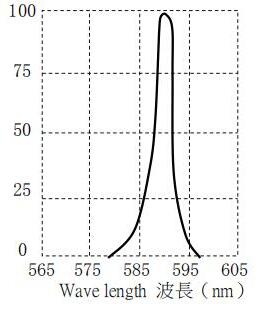

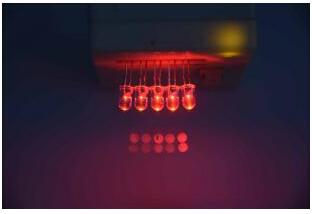

| Red Wavelength | Yellow Wavelength | Green Wavelength |
The LED indicator can be used for the traffic light.
 |  |  |

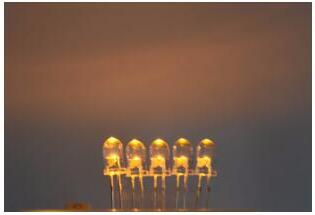

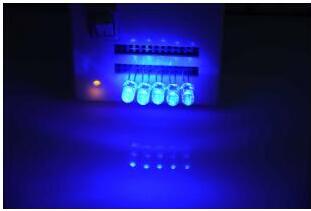

| Red Light | Yellow Light | Blue Light |
APPLICATION
It applies to decoration lighting, advertisement lighting, stage lamp, indicator and electrical products, digital products, automatic electronics, traffic instruction, electrical appliance and so on.
